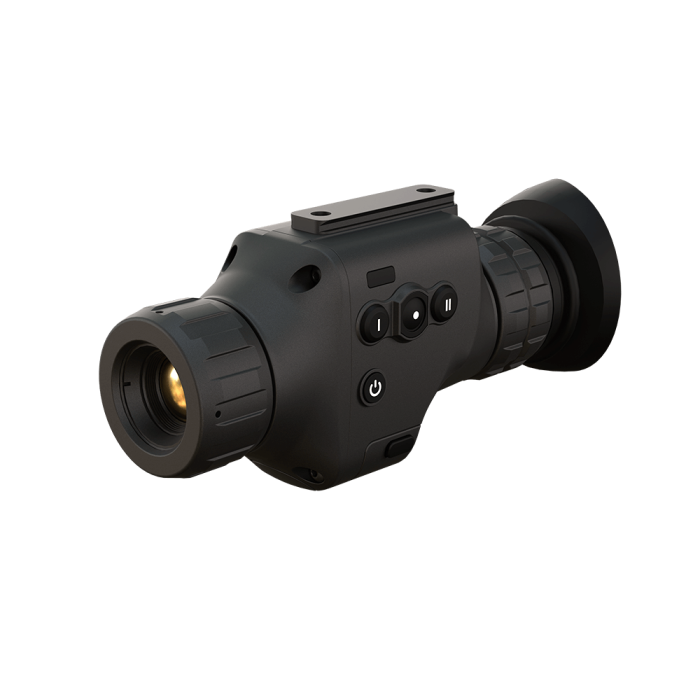

ATN ODIN LT 640 3-12x

Out of stock, available for backorder.
SKU
TIMNODN635X
" ATN ODIN LT 640 3-12X Specifications

ATN ODIN LT 640 3-12X Thermal Monocular Specifications

  • Lens: 35 mm
  • Resolution: 640x480 pixels
  • Frame Rate: 60 fps
  • Pixel Pitch: 12 μm
  • Magnification: 3-12x
  • Field of View: 12.6° x 9.4°
  • Core: ATN Obsidian Core LT
  • Display Resolution: 1280x960 pixels
  • Eye Relief: 25 mm
  • IP Rating: Weather resistant
  • Color Modes: White Hot, Black Hot
  • Battery Type: 1 x CR123A (Li-ion)
  • Battery Life:
    • Standard Battery: 2.5 hours
    • Optional Rechargeable Battery: 5 hours
  • Charging: USB Type-C port on the Optional Rechargeable Battery
  • Operating Temperature: -20°F to +120°F / -28°C to 48°C
  • Dimensions: 5.71"" x 2.8"" x 2.01"" / 145 x 71 x 51 mm
  • Weight: 342 g
  • Human Detection Range: 1580 meters
  • Human Recognition Range: 720 meters
  • Human Identification Range: 350 meters
"
The ATN ODIN LT 640 3-12X thermal monocular features a 35 mm lens with a resolution of 640x480 pixels and a frame rate of 60 fps, utilizing a 12 μm pixel pitch. It offers magnification capabilities ranging from 3x to 12x and has a field of view of 12.6° x 9.4°. The device is powered by the ATN Obsidian Core LT and includes a display resolution of 1280x960 pixels with an eye relief of 25 mm. Designed to be weather-resistant, it supports color modes such as White Hot and Black Hot. The monocular operates on a CR123A lithium-ion battery, with a standard battery life of 2.5 hours, while an optional rechargeable battery extends runtime to 5 hours. Charging is facilitated via a USB Type-C port on the rechargeable battery. It functions effectively within a temperature range of -20°F to +120°F (-28°C to 48°C) and measures 5.71 inches x 2.8 inches x 2.01 inches (145 mm x 71 mm x 51 mm), weighing 342 grams. The device provides a human detection range of up to 1580 meters, a recognition range of 720 meters, and an identification range of 350 meters.
More Information
MSRP $2,895.00
Brand ATN
